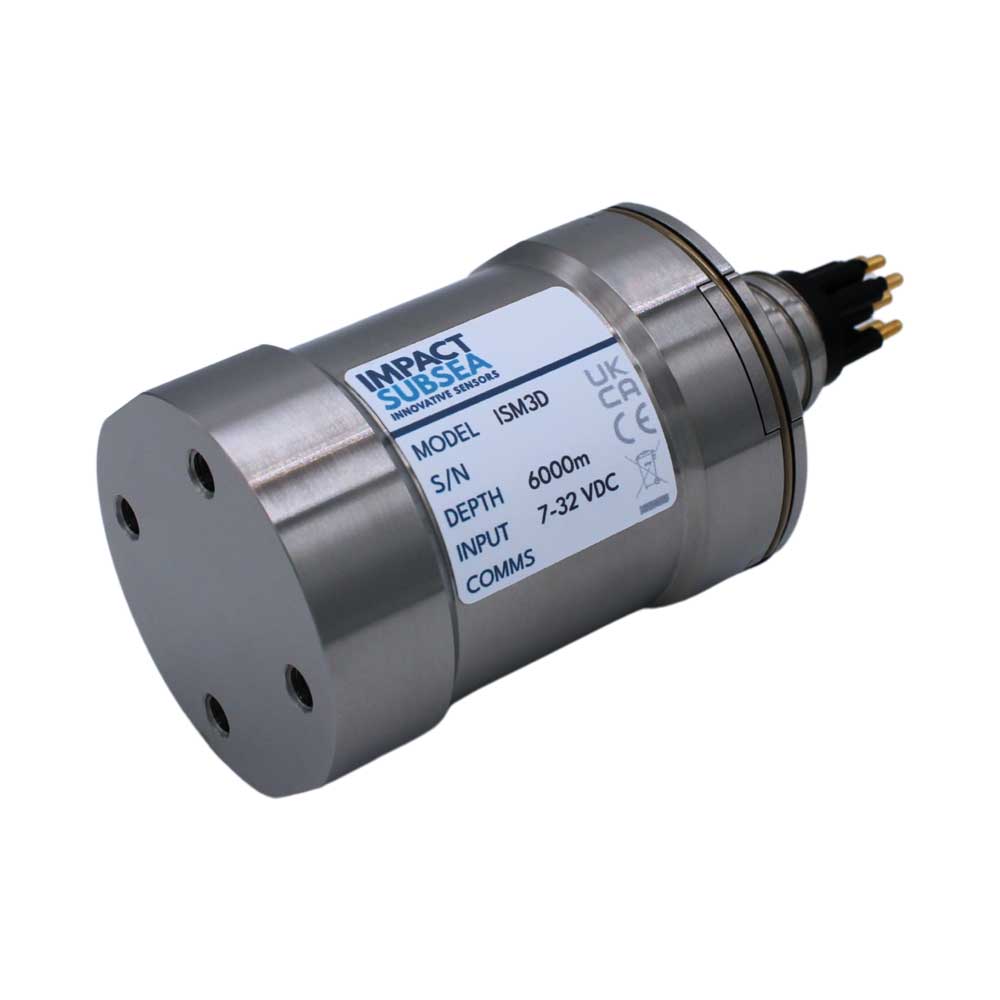

Impact Subsea ISM3D
Equipment rental to supply Underwater Attitude and Heading Reference System (AHRS) with Titanium or acetal housing and selectable Inertial Mode. Comes with 0.5-meter interface whip, USB drive with SeaView configuration software and user manual, quick start guide, and transit case.
The ISM3D is a highly accurate underwater Attitude & Heading Reference System.
The ISM3D utilises high grade MEMS based Accelerometers, Angular Rate Gyroscopes and Magnetometers all of which feed into an advanced fusion engine driven by a dual core micro-processor.
The unit provides Heading to ±1° of local Magnetic North with Pitch and Roll to ±0.07° accuracy.
Provided in a Titanium housing, depth rated to 6,000 meters, with a length of 65mm – the ISM3D sets a new standard in size, durability and capability.
Also available in an Acetal Housing depth rated to 1,000 meters or as an OEM system.
| Impact Subsea ISM3D Motion Sensor, Titanium 6k Rated |
| Equipment rental to supply Underwater Attitude and Heading Reference System (AHRS) with Titanium or Acetal housing and selectable Inertial Mode. Comes with 0.5-meter interface whip, USB drive with SeaView configuration software and user manual, quick start guide, and transit case. |
