Product Description

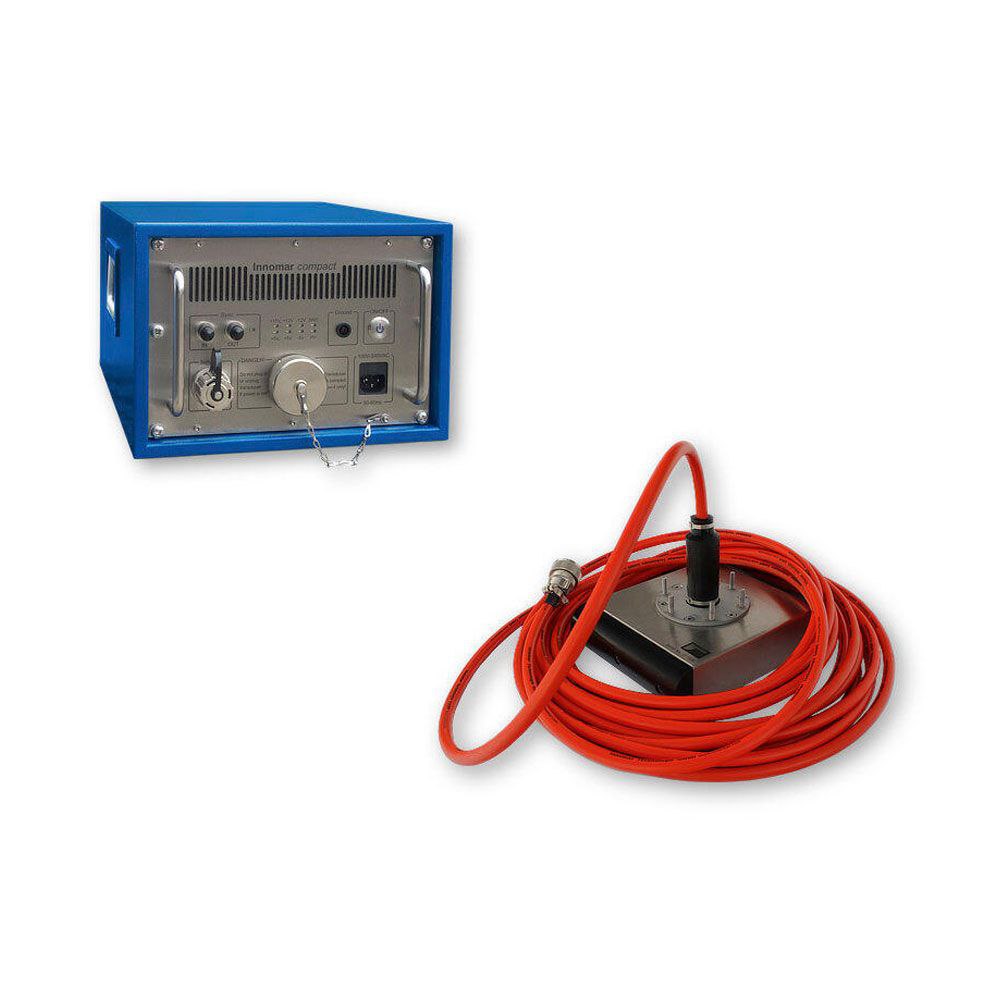

Equipment rental to supply an Innomar Compact Sub-Bottom Profiler. Comes with topside interface, pole mountable transducer with built in 20-meter deck cable, accessory kit, SES-WIN control software, mounting hardware, and transit cases.
The Innomar “compact” model was designed for inshore surveys in shallow-water down to 400 metres water depth, but can also be used in coastal areas.
Because of its small size and weght this system is convenient even on small boats. Controlled via Ethernet using any Windows based PC or laptop it is a user friendly and affordable design, too. For this SBP model there is a Sidescan Extension available.
The Innomar “compact” model acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.
This model has been first launched as “SES-2000 compact” in 2002, the latest generation has been introduced in 2021.
Included Features
16-bit SLF full waveform data acquisition (sub-bottom data) / Innomar “RAW” data format
Multi-ping mode for maintaining a high pulse rate in deep waters
Multi-frequency signals
SESWIN basic remote-control via COM / UDP (e.g. line start/stop, line name)
Optional Features
SESWIN extended remote-control via Ethernet (all survey settings)
external DC power adapter (12 V or 24 V)
Pre-configured laptop PC (control unit)
Transducer bracket for over-side-mounting
Transducer frame with integrated shock absorbers for hull-mounting
Sidescan Extension (100kHz; interchangable with SBP transducer)
| Innomar Compact SubBottom Profiler |
| Equipment rental to supply an Innomar Compact Sub-Bottom Profiler. Comes with topside interface, pole mountable transducer with built in 20-meter deck cable, accessory kit, SES-WIN control software, mounting hardware, and transit cases. |
