Product Description

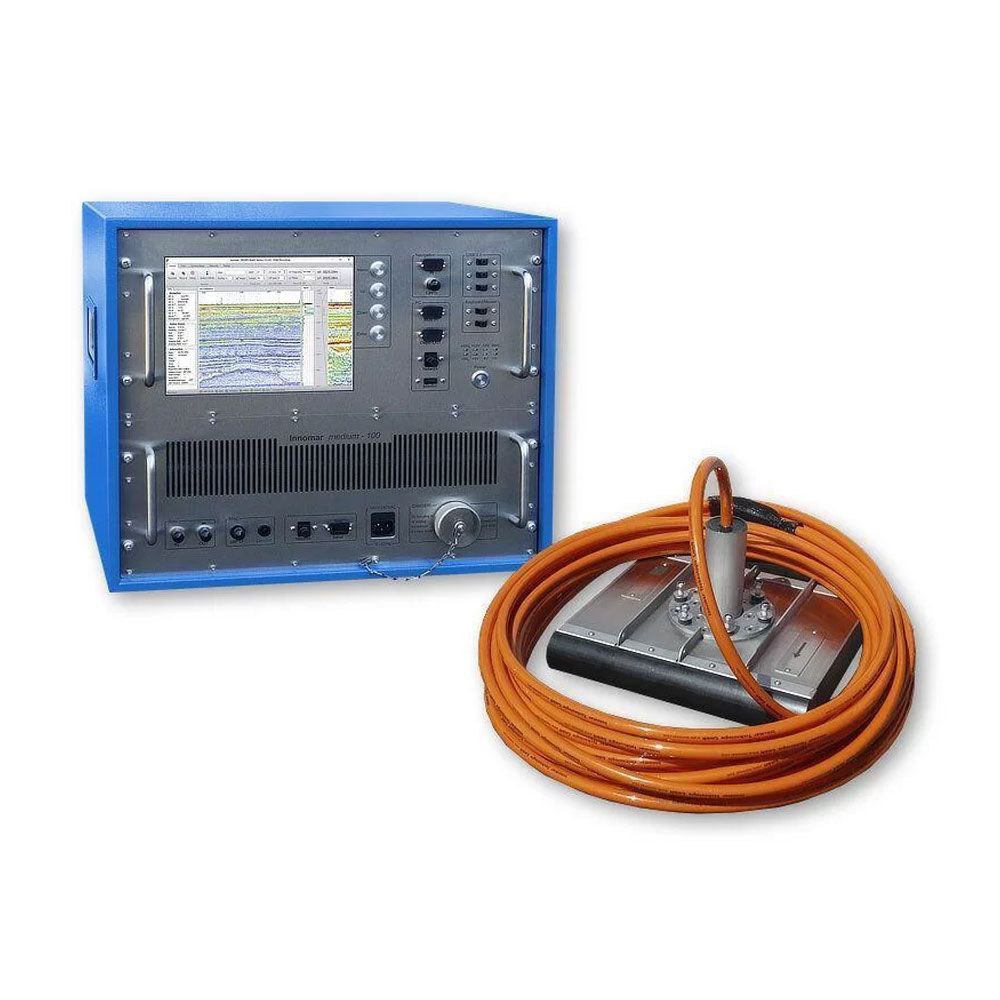

Equipment rental to supply an Innomar Medium-100 Sub-Bottom Profiler. Comes with topside interface with built-in PC, pole mountable transducer with 30-meter deck cable, accessory kit, SES-WIN control software, mounting hardware, and transit cases.
The Innomar “medium-100” parametric sub-bottom profiler is designed for offshore applications down to 2,000m water depth. The transducer can be either mounted over-the-side or in the hull.
The Innomar “medium-100” SBP acquires full-waveform data (24 bit) that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.
The first generation of this SBP model was introduced in 2004 (“SES-2000 medium”), while the latest generation has been launched in 2020.
Included Features
Heave / Roll beam stabilization
24-bit SLF full waveform data acquisition / Innomar “SES3” data format
Multi-ping mode for maintaining a high pulse rate in deep waters
Multi-frequency signals
LFM chirp (5 – 15 kHz)
KVM extender for remote control
SESWIN basic remote-control via COM / UDP (e.g. line start/stop, line name)
Optional Features
SESWIN extended remote-control via Ethernet (all survey settings)
Rugged housing with shock absorbers (MIL standard, IP65 when closed)
Transducer frame with integrated shock absorbers for hull-mounting
